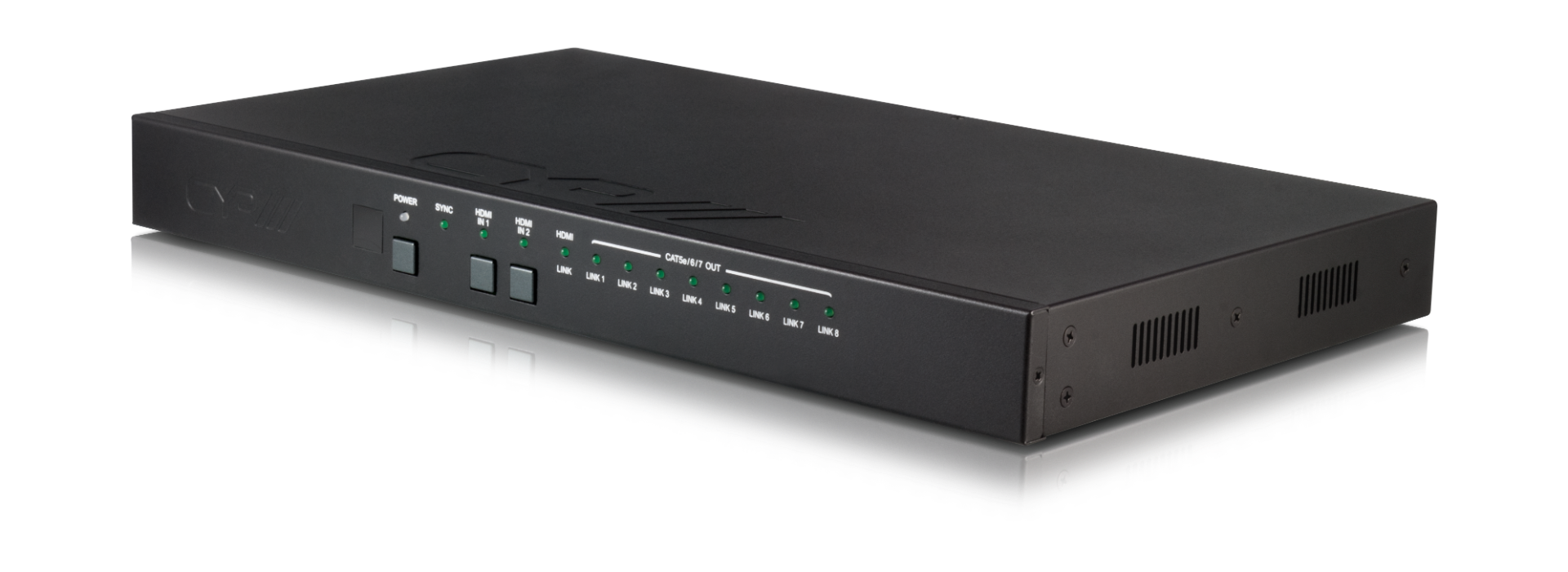

The PU-2H8HBTE-AD HDBaseT switch has two HDMI inputs and eight HDBaseT outputs, plus a single HDMI output. This device allows the user to select either HDMI source for distribution to all screens simultaneously. Each HDBaseT output supports the transmission of video (resolutions up to 1080p Full HD, plus 4K Ultra High Definition, and 1920x1200@60Hz), multi-channel audio, single LAN serving, and control via 2-way IR, RS-232 or Web GUI/Telnet IP over a single CAT5e/6/7 cable (up to 100m). The HDMI output supports the same video resolutions and high definition audio via certified HDMI cables up to 15m.
For additional flexibility, the PU-2H8HBTE-AD is provided with Audio De-Embedding functionality allowing easy audio integration into a wider AV system or direct connection to an AVR. Audio outputs are via a single Optical connection or an Analogue Stereo output (2x RCA).
The HDBaseT outputs are designed to be used with any compatible HDBaseT Receiver as follows: PU-507RX / PU-507RX-2H / PU-507RX-SCD / PU-507WPRX / PU-1109RX. These Receivers support Power over Cable (PoC) function so do not require a separate PSU for power.
Use the LAN serving capabilities of this switch to add internet connectivity to every HDBaseT output zone. In addition, this switch also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems such as Control 4.
